Armadillo Tactical Ladder Specifications

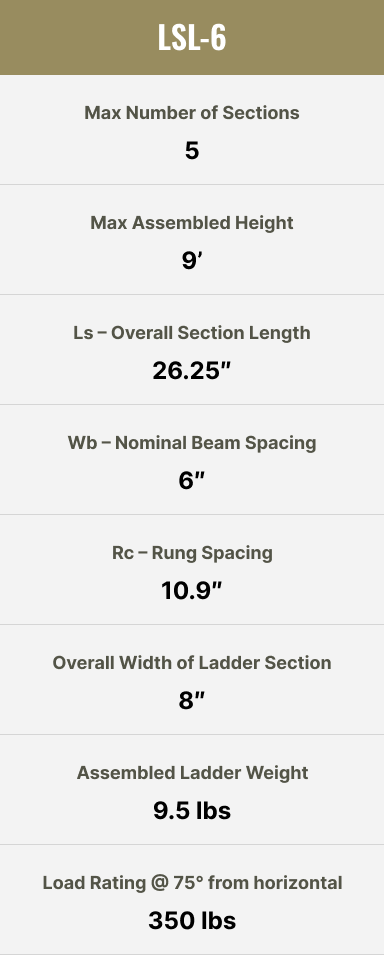

LSL-6
The narrow segment carbon fiber ladder is a version specifically designed for special forces and other tactical teams where minimum size and weight are an absolute necessity.

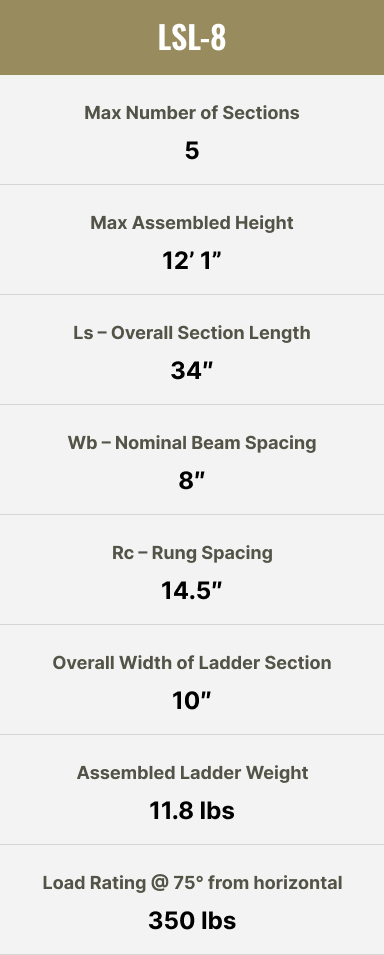

LSL-8
The standard segment carbon fiber ladder is an all-purpose lightweight tool for scaling walls and other vertical obstacles. At only 2.35 pounds per segment, it represents the lightest, most versatile tactical ladder system available.

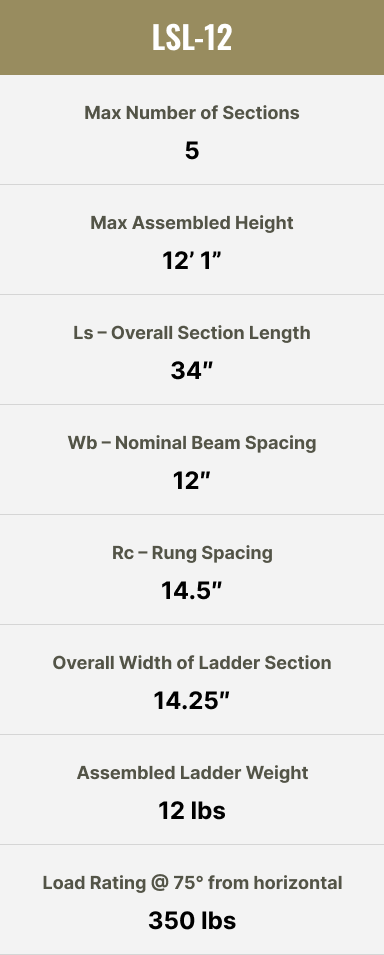

LSL-12
The wide segment carbon fiber ladder is an all-purpose lightweight tool for scaling walls and other vertical obstacles. At only 2.4 pounds per segment, it is extremely light, yet offers ample room to place both feet side-by-side on a single rung. This design was developed in response to customer demand for this capability.

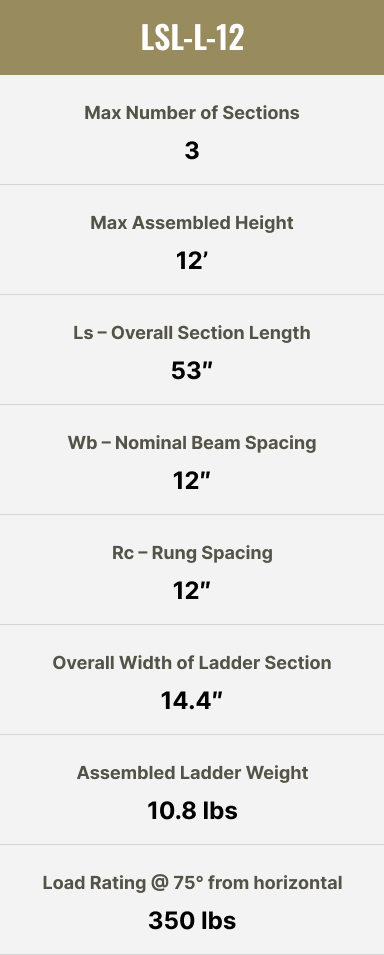

LSL-L-12
This 3-segment tactical ladder is a good option for those who do not require the compact design of the LSL series of ladder, but still need the overall length.

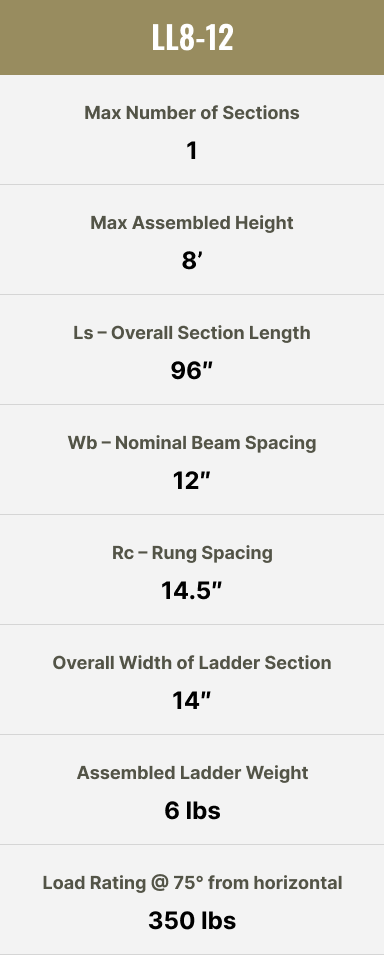

LL8-12
The one-piece ladder is a great option for those who do not require the segmented design of the LSL series and can benefit from the reduced weight and cost savings.

PATENTED #8,448,748

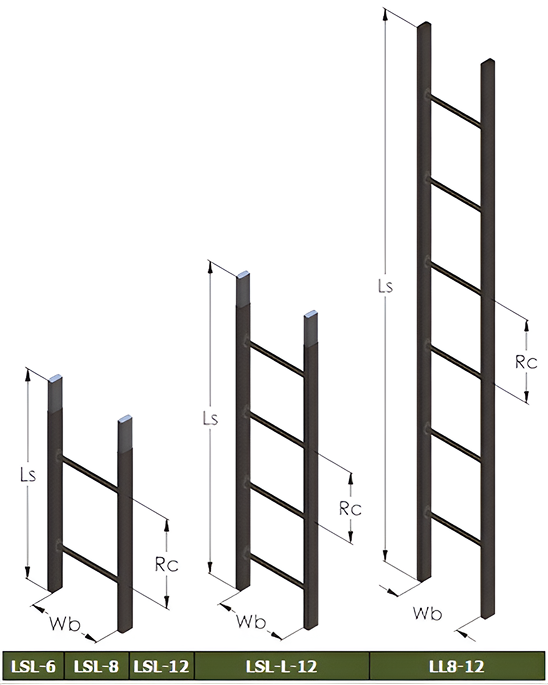

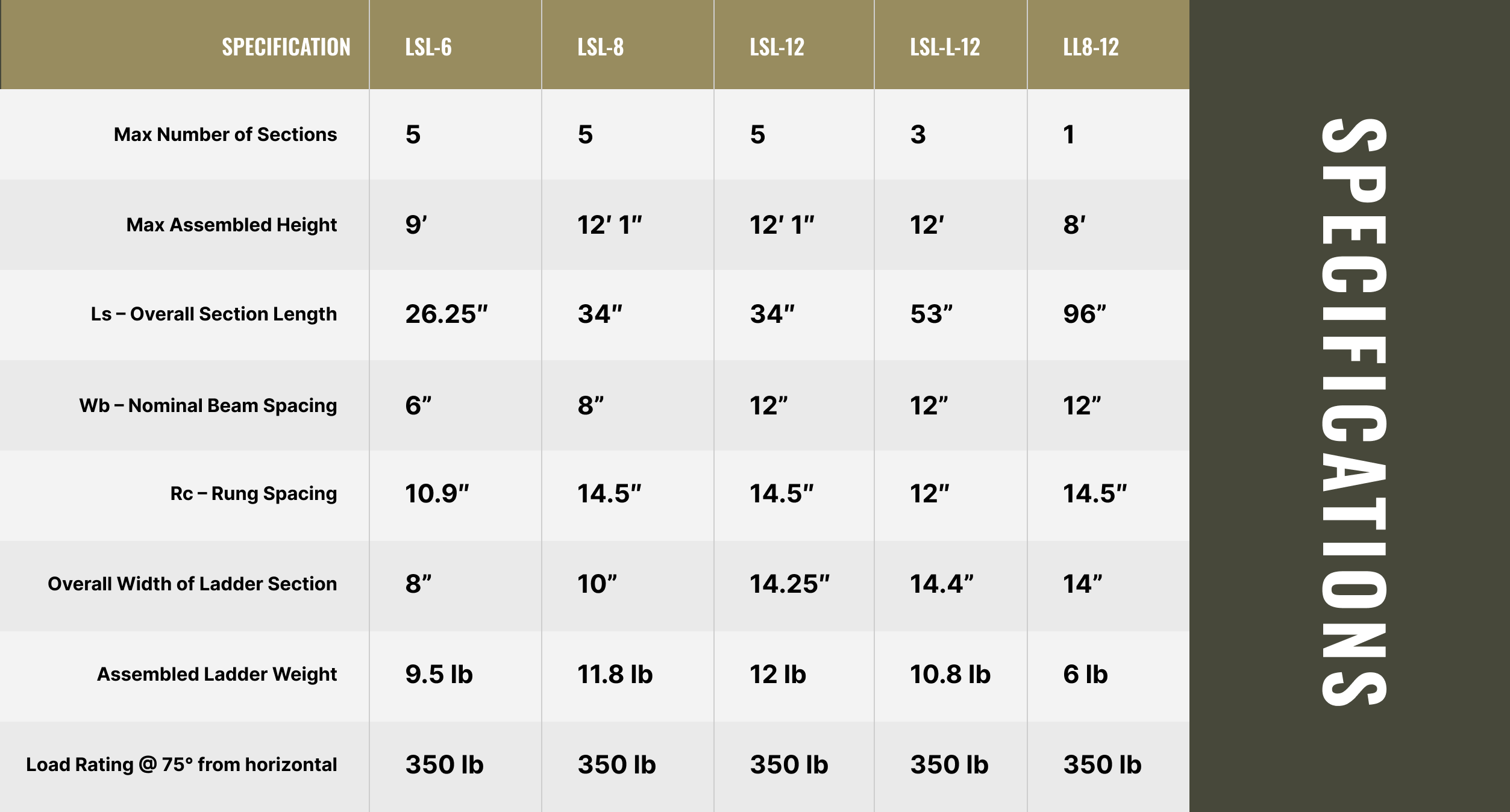

Specification LSL-6 LSL-8 LSL-12 LSL-L-12 LL8-12
Max Number of Sections 5 5 5 3 1
Max Assembled Height 9′ 12′ 1″ 12′ 1″ 12′ 8′
Ls – Overall Section Length 26.25″ 34″ 34″ 53″ 96″
Wb – Nominal Beam Spacing 6″ 8″ 12″ 12″ 12″
Rc – Rung Spacing 10.9″ 14.5″ 14.5″ 12″ 14.5″
Overall Width of Ladder Section 8″ 10″ 14.25″ 14.4″ 14″
Assembled Ladder Weight 9.5 lbs 11.8 lbs 12 lbs 10.8 lbs 6 lbs
Load Rating @ 75° from horizontal 350 lbs 350 lbs 350 lbs 350 lbs 350 lbs
